Control Hire’s 1000mm Axial Fans are purpose-built for high-performance airflow in challenging environments. Now available in two variants — a standard 11kW 5-blade and a powerful 15kW 8-blade model — both fans are designed to deliver robust, reliable ventilation in tunnels, shafts, basements, confined spaces, and industrial worksites.

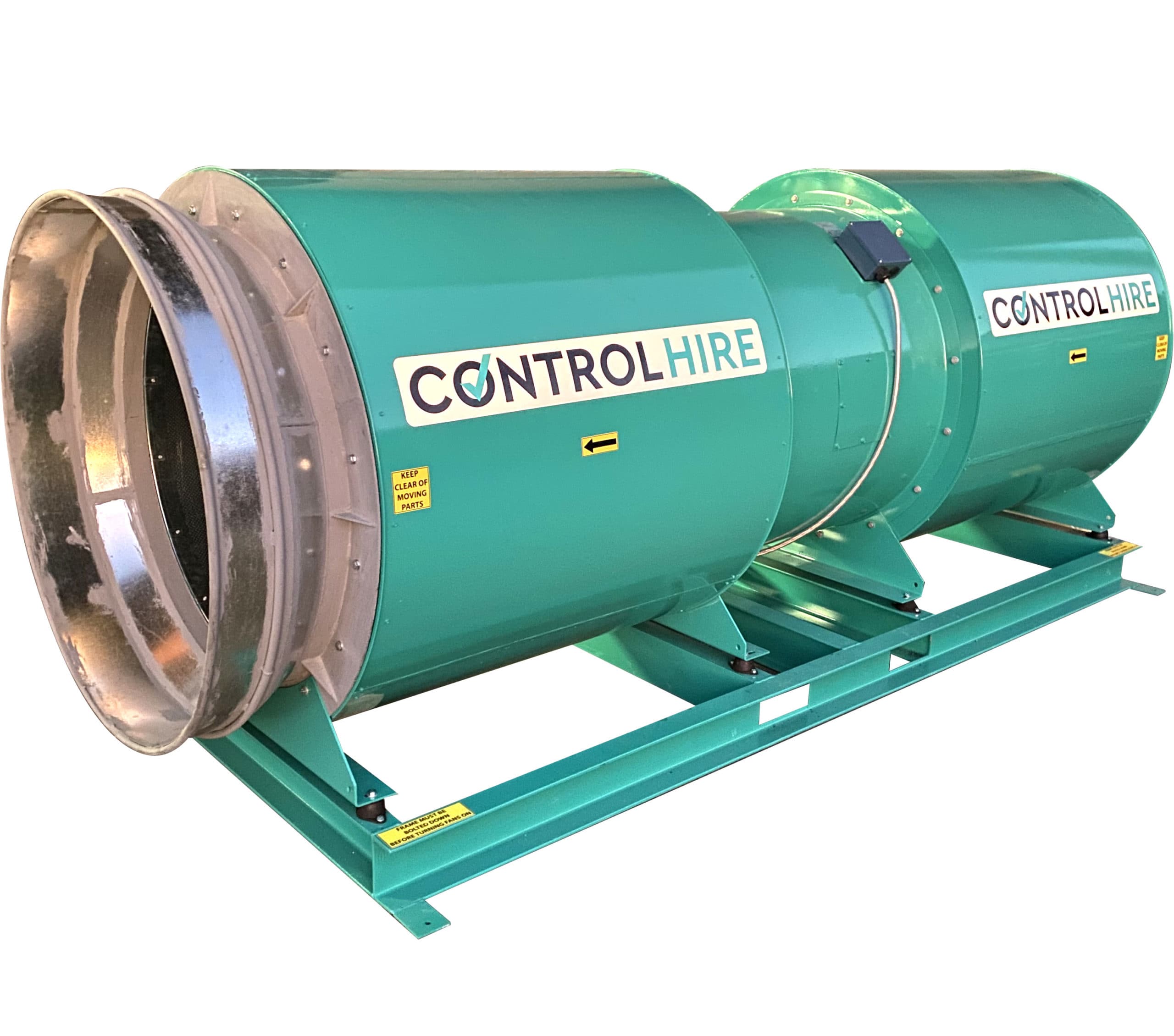

These Australian-made fans are plug-and-play, capable of handling forced ventilation or fume and dust extraction through 1000–1220mm ducting. With thrust levels up to 420N and optional silencers reducing sound levels to as low as 73.7dBA, these units are engineered for compliance, performance, and minimal disruption to surrounding areas.
Key Applications:
Ventilation Solutions for:
Tunnels
Shafts
Basements
Mines
Enclosed Areas
Warehouse
Factory
Construction Site
Underground Works
specifications
11kW, 5-Blade / 15kW, 8-Blade
Motor Power: 11kW, 1470rpm / 15kW, 1470rpm
Current Draw: 20.4A / 27.4A
Voltage & Connection: 415V, 3 Phase, 32A, 4 Pin / 415V, 3 Phase, 32A, 4 Pin
Noise Level @1m: 84dBA (74dBA with silencers) / 83.7dBA (73.7dBA with silencers)
Thrust: 330N / 420N
Duct Diameter: 1000mm
Dimensions (LxWxH): 800 x 1100 x 1180 mm
Weight: 250kg
Temperature Range: -20°C to +45°C –
Lifting Method: Forklift / Lifting Slings
Options: Silencers, Speed Controller
Fan Performance
Detailed fan performance curves (static pressure vs airflow) are available for all axial fan sizes. Our engineering team can provide Graph 5 — Axial Fan Curves showing performance data for the 500mm, 710mm, 1000mm, and 1250mm models to assist with ventilation design and equipment selection.
Contact our team for site-specific ventilation calculations and fan selection guidance.
