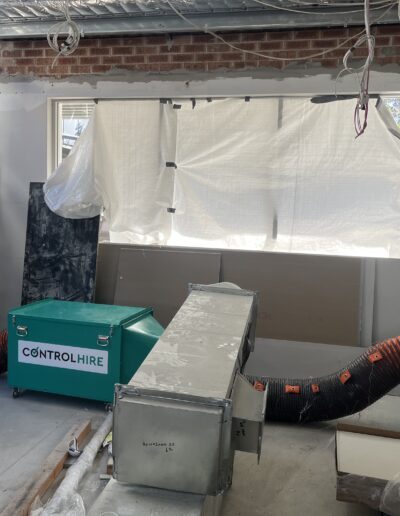

Control Hire’s Air Scrubbers are designed for the construction market, making it easy to move the equipment and get into those hard to reach areas on site. This Air Scrubber can be setup with 3-stage, HEPA filtration, filtering up to 99.97% of dust captured.
The unit is supplied with a powerful centrifugal fan, ducting and floor hood. The hood should be positioned as closely as possible to the source, the fan will extract the fumes through the hood and into the HEPA filter capturing the dust. The air being discharged from the fan has been filtered and you can direct this filtered air with ducting up to lengths of 90 metres.
This Air Scrubber is ideal for capturing and removing hazardous dust such as respirable crystalline silica (RCS) and lead, particularly in live environments.
Key Applications:
Filtering dust particles, fumes and mold contaminants resulting from:
Grinding
Cutting
Excavating
Tunnelling
Mining
Sanding
Welding
Metalworking
Painting
Blasting
Manufacturing
Material Processing
Specifications
Air Volume: 5,000 m³/h
Motor: 2.2kW
Power Supply: 240V, 10A, 1-Phase / 415V, 20A, 3-Phase
Dimensions (L x W x H): 1564 x 714 x 963mm
Filtration: 3-Stage (F5 Pre-Filter, F9 Secondary Filter, H13 HEPA Filter)
Duct Diameter: 305 mm
Lifting Method: Forklift
Pressure Monitoring: Pressure Gauge, Light and Alarm
Weight: 125kg
Available Filters
| Filter Type | Max Temp (°C) | Airflow (m³/h) | Pressure Drop (Pa) | MERV Rating | AS Performance | Dimensions (mm) |
|---|---|---|---|---|---|---|
| G4 Pad | 80 | 3400 | 90 | MERV 8 | G4 | 12 x 610 x 610 |
| G4 Pad Ring | 80 | 3400 | 90 | MERV 8 | G4 | 5 x 595 x 595 |
| F5 Pleated | 70 | 3400 | 60 | MERV 10 | F5 | 96 x 595 x 595 |
| F5 Bag | 70 | 3400 | 65 | MERV 10 | F5 | 96 x 592 x 592 |
| F9 V-Bank | 70 | 3400 | 125 | MERV 15 | F9 | 292 x 595 x 595 |
| H13 HEPA V-Bank | 70 | 3400 | 250 | MERV 17 | H13 | 292 x 592 x 592 |
| H13 HEPA | 110 | 2700 | 250 | MERV 17 | H13 | 292 x 610 x 610 |
| Activated Carbon V-Bank | 50 | 3400 | 190 | MERV 13 | Carbon | 292 x 595 x 595 |
3-Stage Filtration System
Stage 1: F5 Pleated Pre-Filter
Blocks coarse dust, lint, and pollen. Extends the lifespan of HEPA and carbon filters downstream.
Stage 2: H13 HEPA Filter
Achieves ≥99.95% removal efficiency at 0.3μm. Captures ultrafine particulates including Respirable Crystalline Silica (RCS).
Stage 3: Activated Carbon Filter
Absorbs volatile organic compounds (VOCs), fumes, odours, and chemical vapours.
