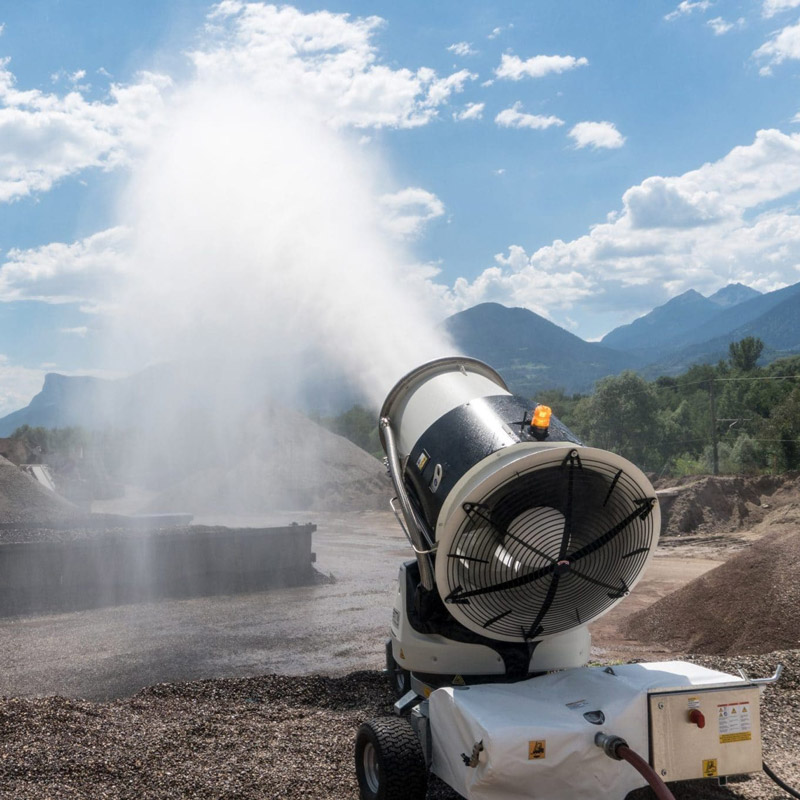

Available at Control Hire, the V22s is our most powerful dust suppression cannon available, capable of neutralizing large dust clouds. This is the perfect addition to construction sites, demolition, all types of open pit mining, recycling plants, material storage, loading facilities, landfills, wood processing, quarries and more. Control and suppress hazardous dust at your site today.
Key Applications:
Suppressing dust during:
Excavation
Demolition
Tunnelling
Mining
Roadworks
Recycling
Quarrying
Milling
Crushing
Composting
Unloading
Remediation
Blasting
specifications
Length with steering: 2740 mm
Width with wheels: 1970 mm
Height with wheels: 2500 mm
Weight on carriage: 1400 kg
Machine only weight: 650 kg
Rotation angle: 360 degrees
Tilting angle: 6-46 degrees
Pump: 15 kW optional
Turbine motor: 18,5 kW
Voltage: 400 V
Frequency: 50 Hz
Nominal current: 35 A
Power plug: 63A x5 or 125A x5
Water connection: R2 1/2
Water filter: 250/60 micron/mesh
No.of nozzles: 30 AMP 1.8 + 27 Quadrijet
Water consumption: 60-300 l/m
Halogen lamp: 150 W
Remote control: 100 m
Decibel dbA distance 20 m 63 dB(A)
*at reduced speed
How Droplet Size Affects Dust Suppression
The optimal droplet size for effective dust suppression is typically in the range of 50–60 microns. This precise size is ideal for capturing and binding with dust particles suspended in the air, increasing the chances of collision and adhesion — especially with fine particulates such as Respirable Crystalline Silica (RCS).
If the droplet diameter is much greater than the dust particle, the dust simply follows the air streamlines around the droplet, reducing the chance of impact and capture. On the other hand, droplets that are too small can evaporate before they make contact.
Control Hire’s dust suppression systems are engineered to consistently produce this optimal droplet size, ensuring maximum dust capture efficiency, better air quality, and compliance with Australia’s stringent WHS regulations.
