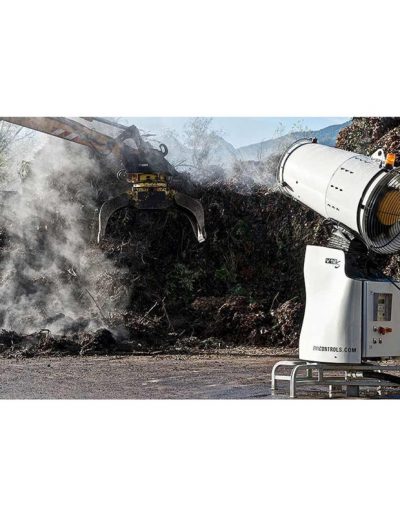

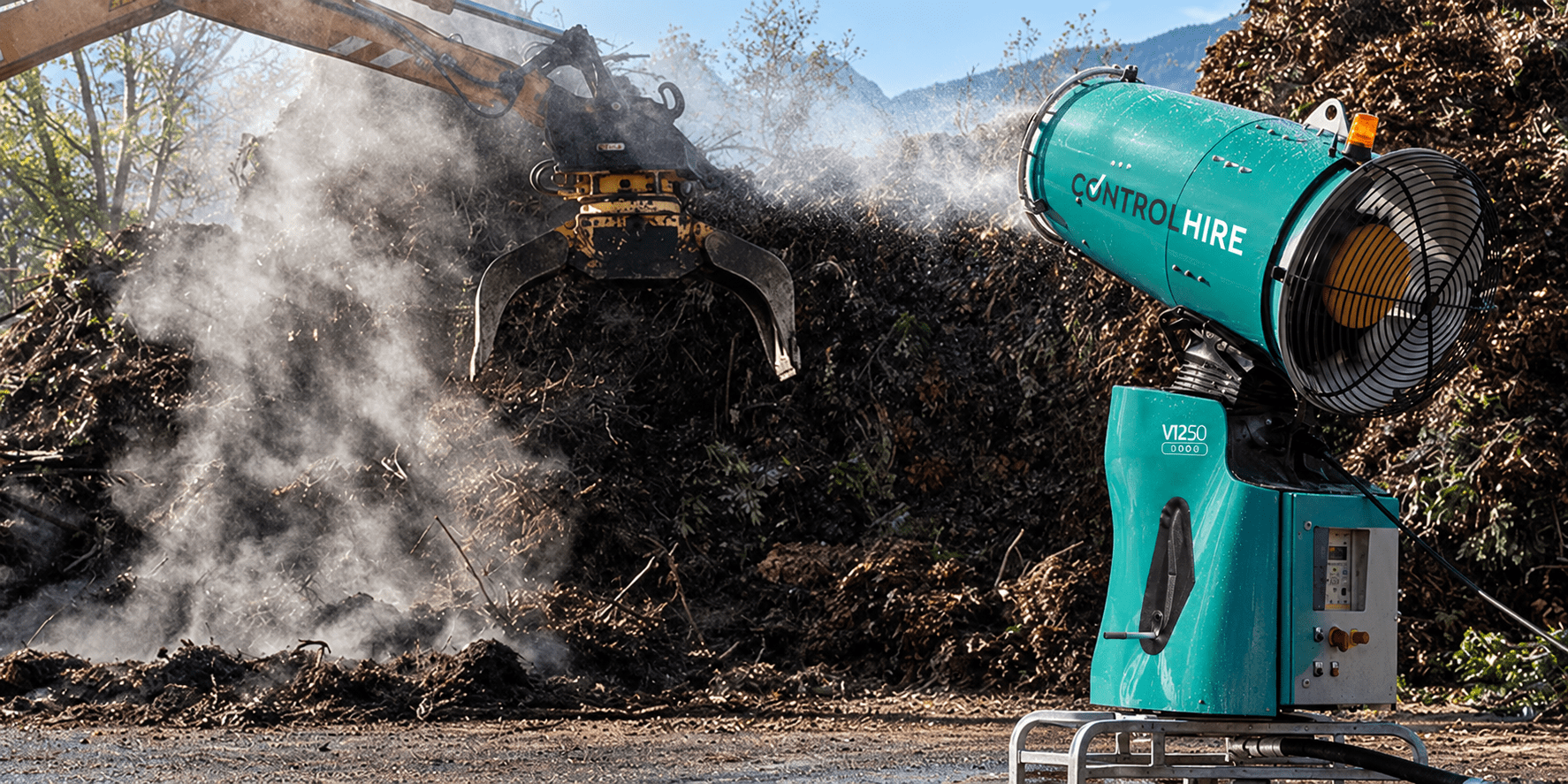

Available at Control Hire, The V12 Odour is one of our solutions designed to counteract bad odours. The nozzles on our Odour Control Cannon products produce a fine mist, which the turbine disperses across a vast region. When there is a need to avoid the discharge of unwanted odours, measured amounts of biological components are added.
It can also prevent nuisance smells and odours in large-scale complexes, with a projection range of 50 metres. Another significant benefit is the turbine’s pivot function which can be used in applications in large open areas, covering a greater space of air pollutants.
technical data
Throwing distance (up to) 30* / 50 m
Nominal power – turbine 3* / 11 kW
Nominal power – pump 0,75 kW
Sound pressure level LA 60* / 63 at 20m db(A)
Operating temperature 0° bis + 35°
Turbine tilt 0° bis +52°
Water flow 4 l/min
Swing (automatic) 360°
Water supply pressure 1 – 8 bar
Working pressure 70 bar
Tank additive 30 l
How Droplet Size Affects Dust Suppression
The optimal droplet size for effective dust suppression is typically in the range of 50–60 microns. This precise size is ideal for capturing and binding with dust particles suspended in the air, increasing the chances of collision and adhesion — especially with fine particulates such as Respirable Crystalline Silica (RCS).
If the droplet diameter is much greater than the dust particle, the dust simply follows the air streamlines around the droplet, reducing the chance of impact and capture. On the other hand, droplets that are too small can evaporate before they make contact.
Control Hire’s dust suppression systems are engineered to consistently produce this optimal droplet size, ensuring maximum dust capture efficiency, better air quality, and compliance with Australia’s stringent WHS regulations.
