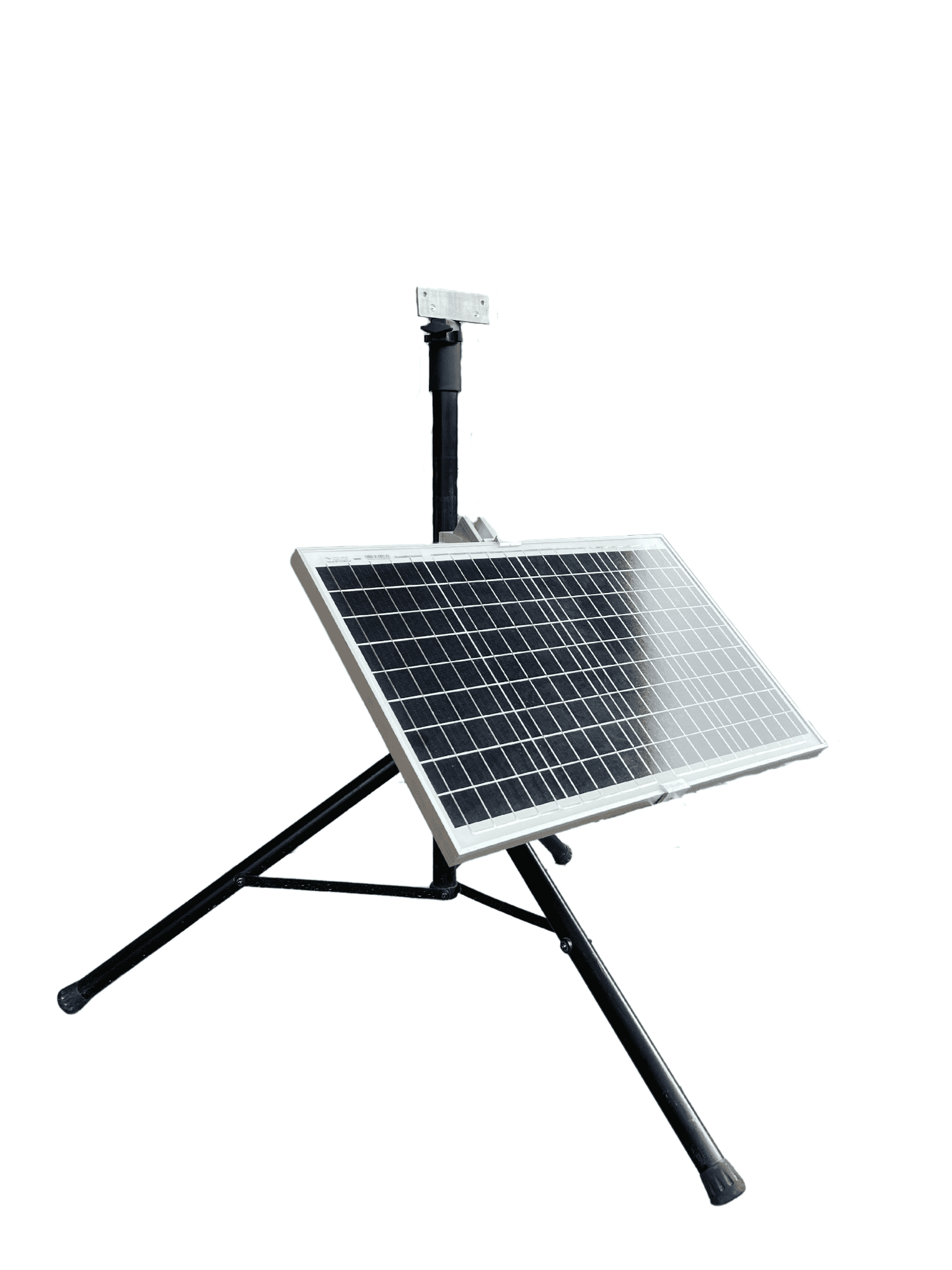

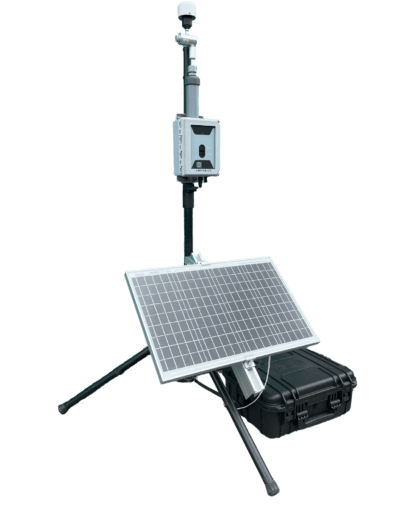

Control Hire’s 40W Solar Power Panel is the sustainable and efficient power solution designed specifically for powering our noise, gas and dust monitors. Built for durability and performance, this solar panel ensures uninterrupted monitoring even in remote or off-grid locations, helping you maintain compliance and safety standards with ease.
Key Applications
Remote Areas
Unpowered Areas
Long Term Requirement
Specifications
Nominal Power: 40W
Max-Power Voltage: 18.3V
Max-Power Current: 2.19A
Open-Circuit Voltage: 22.45V
Short-Circuit Current: 2.4A
Cell type: Monocrystalline
Number of cells in series: 36
Maximum system voltage: 1000V
Temperature coefficient of MPP (%) -0.45/°C
Temperature coefficient of Voc (%) -0.35/°C
Temperature coefficient of Isc (%) +0.04/°C
Temperature Range: -40°C to +85°C
Surface Maximum Load Capacity: 200 kg/m²
Allowable Hail Load: 23 m/s, 7.53 g
Frame: Aluminium
Net Weight 3.1Kg
Dimensions: 425 x 668 x 25mm
