Control Hire’s Total Earth Pressure Cell provides reliable measurement of soil pressure and stress distribution in a wide range of civil and geotechnical projects. Designed to capture both effective stress and pore water pressure, it ensures accurate real-time data for excavation stability, retaining walls, embankments, and tunnel linings.
Constructed with corrosion-resistant stainless steel and a hydraulic fluid-filled sensing element, the unit offers long-term stability and precision in harsh environments. It is available in multiple pressure ranges and diameters to suit diverse monitoring needs.

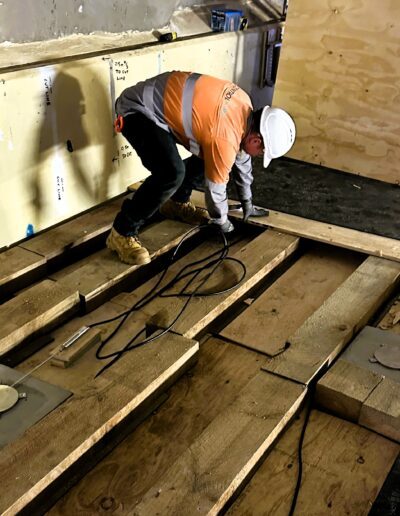

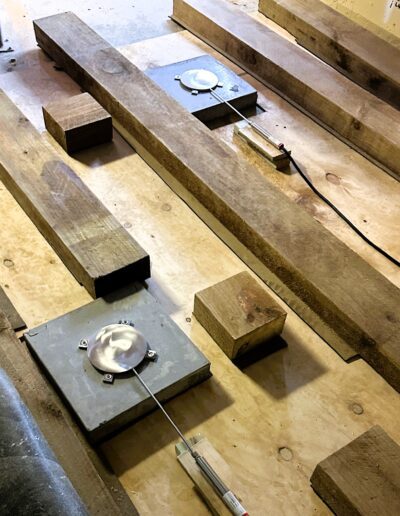

Key Applications
- Pressure monitoring in diaphragm and slurry walls
- Retaining wall stability assessment
- Tunnel lining and embankment monitoring
- Structural load analysis in bridges and dams
- Soil stress measurement in mine backfilling and railway projects
Specifications
- Pressure range: 345 kPa – 20.7 MPa (model dependent)
- Overload capacity: 150% full-scale
- Accuracy: ±0.1% FS (VW models), ±0.25% FS (strain gauge models)
- Signal output: 2000–3500 Hz (VW) or 4–20mA (strain gauge)
- Operating temperature: -20°C to +80°C (VW), -30°C to +95°C (strain gauge)
- Outer diameters available: 165 mm, 245 mm, 320 mm
- Thickness: 7.5 mm or 11 mm (model dependent)
