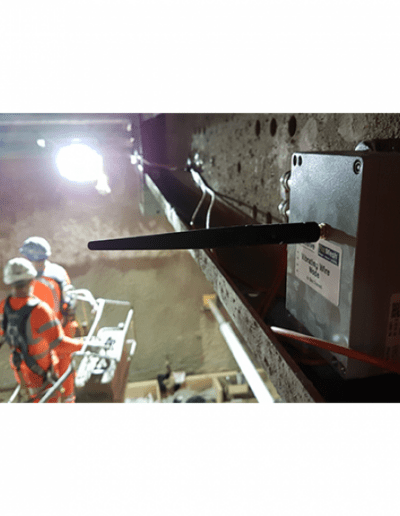

The Vibrating Wire Node enables high-resolution data capture from a wide range of vibrating wire instruments, including piezometers, strain gauges, pressure cells, and extensometers. Designed for use in challenging field conditions, it wirelessly transmits data back to a central gateway, removing the need for cabling or regular site access.
Key Applications
- Groundwater pressure monitoring (piezometers)
- Strain and load monitoring in bridges or structures
- Crack width and displacement detection
- In-place inclinometers for slope stability
Specifications
- Frequency range: 200–6000 Hz
- Communication range: Up to 15 km
- Battery: Non-rechargeable, 10–12 year lifespan
- Enclosure rating: IP66
- Temperature sensor accuracy: ±0.1°C
