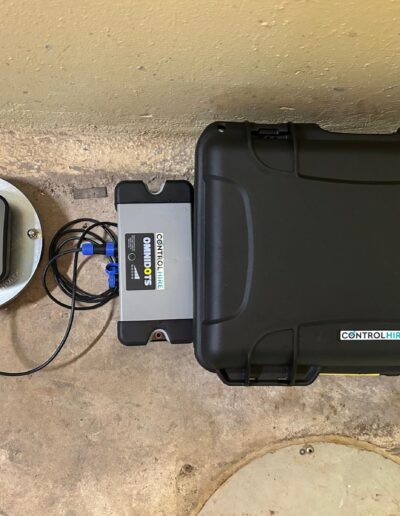

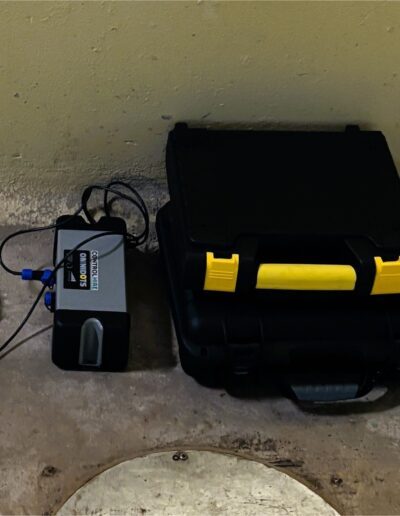

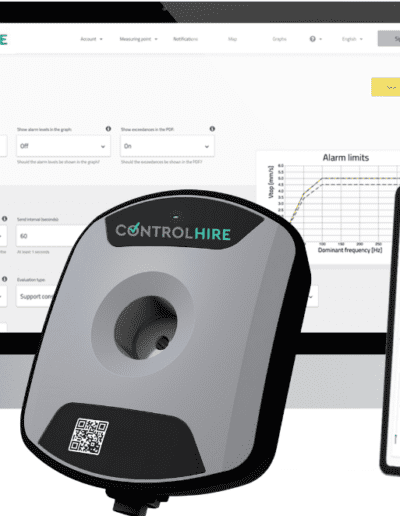

Real-time vibration monitoring, Control Hire’s vibration monitors provide high-quality vibration measurement data straight to the cloud. The monitors are quick to install and can be powered by mains or battery. With real-time alerts sent to your mobile or email and inbuilt global standards to the software, our monitors will ensure you are doing the right thing on your project when it comes to vibration.
Key Applications:
Live Vibration Monitoring for:
Construction Sites
Structural Vibration Risk
Environmental Impact Assessments
Heritage Building Protection
Mining
Tunnelling
Roadworks
Demolition
Excavation
Base Level Reporting
Vibration Management Plans
Regulation and Compliance
Worker Health and Safety
Specifications
Direction (Axis) – X, Y, Z
Range Frequency – 0.5 – 250 Hz
Range Velocity – + 300mm/s
Measurements – PPV, PPA, PVS, VDV, Veff, Vper, KBFmax, KBFTm, Velocity Traces
Logging Intervals – 2 – 6000 seconds
Data – GPS Cloud Service
Power – Battery, up to 6 weeks
Dimensions – 190 x130 x 45mm
Weight – 260 grams
Mounting – Screw fixing, Auto Levelling
Applicable Standards – BS7385 / SBR-A / DIN4150-3 / / SBR-B / DIN4150-2 / Circulaire du ’86
