Product Details

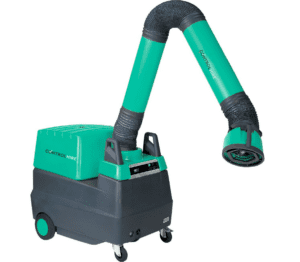

The Miniflex Welding Fume Filter is designed for light-duty welding stations where fumes need to be captured and filtered close to the source, without the cost or footprint of a fixed installation. Standard wheels and a carrying handle make it easy to reposition around the workshop, and the unit can be fully disassembled in minutes for cleaning and filter changes.
Air passes through a five-stage filtration process: starting with a removable metal pre-filter and pre-separator to capture larger particles, then a large-surface-area main filter, an optional activated-carbon stage to control odours, and a final HEPA stage for clean discharge air. A current sensor enables automatic start/stop, so the unit switches on as soon as welding begins and powers down shortly after it stops: cutting energy use and extending motor brush life.
A stainless-steel-ready configuration is also available, featuring a high-efficiency filter cartridge and a filter-saturation indicator with audible alert, suited to stainless steel welding fume extraction.
Control Hire is a construction safety equipment hire business that specialises in products that manage dust, ventilation, noise and fumes on construction sites.
Key Applications:
Fume extraction for:
Stick Welding (Light Duty)
TIG Welding
MIG Welding
Flux-Cored Welding (Light Duty)
Suited to:
Fabrication Workshops
Maintenance Welding Bays
Mobile and Site-Based Welding Stations
Single-Operator Welding Tasks
Stainless Steel Welding (with stainless-ready configuration)
Technical Data
Filtration – Five-stage process: metal pre-filter → pre-separator → main filter cartridge → activated carbon (optional) → HEPA final stage
Main filter surface area – Large-surface-area cartridge for extended filter life
Extraction settings – Two-speed: low and high
Motors – Dual motor configuration for consistent airflow
Automatic start/stop – Current-sensing, switches off automatically shortly after welding stops
Sound level – Quiet operation, under 70 dB(A)
Mounting/Portability – Standard wheels and carrying handle
Power supply – Single-phase, standard power outlet
Stainless-ready option – High-efficiency filter cartridge with filter-saturation indicator and audible alert
