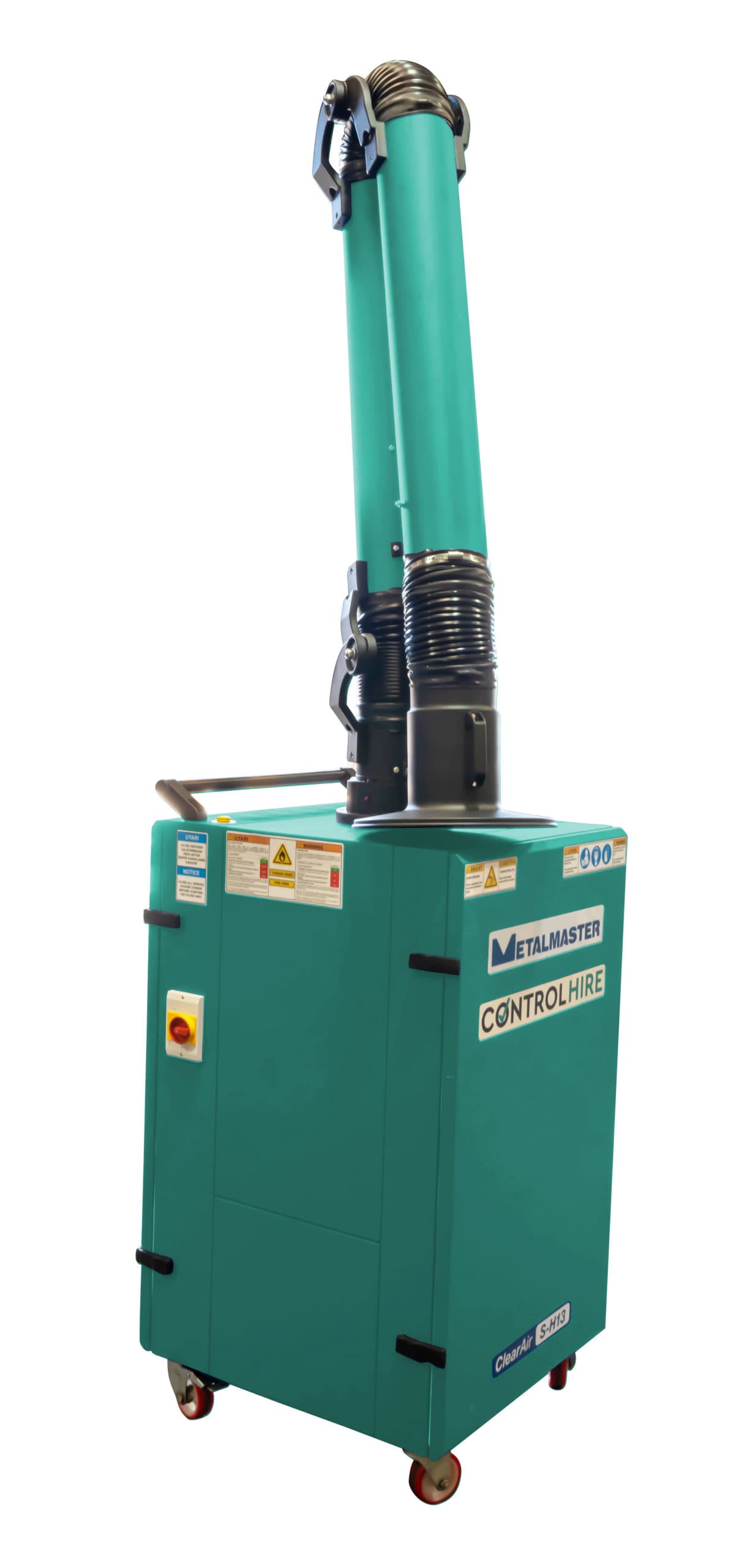

Mobile Welding Fume Filter

The mobile welding fume filter is your portable solution to welding station fumes. Keep your work area safe from fumes even in hard to reach locations by purifying air through the HEPA H13 filters.

Product Details

Available at Control Hire, our Mobile welding fume filter is suitable for all types of welding stations. It has the ability to get close to the source in most compact environments. This equipment is purpose built for safety within the construction industry. Its portability makes convenience the main advantage of this fume extraction system. Need a fume filter for the welding equipment for your site? Get in touch with our team today.

Specifications

Extraction Arm/Hose Length (Metre): 3
Extraction Arm Diameter (mm): 160
Air Flow (m3/h): 1300
HEPA Filter Area (m2): 23
Main Unit Size (w x l x h) (mm): 741 x 655 x 1237
Voltage / Amperage (V / A): 240 / 10
Motor Power (W): 1100
Net Weight (kg): 110

Features



  • Dual stage filtering
  • High volume 1300 m3/h air filtering capacity
  • H13 HEPA filtration providing respirable clear air back into the working environment
  • 3 metre arm with exclusive Exo-Joint High velocity extraction arm (160mm Diameter)
  • Contamination free filter changing from clean air side
  • Silent operation – less than 69dBA
  • Compact design, space saving solution
  • Dirty filter warning light
  • Inlet Spark arrestor
  • Fully mobile for flexible usage
  • 240V 10amp power
