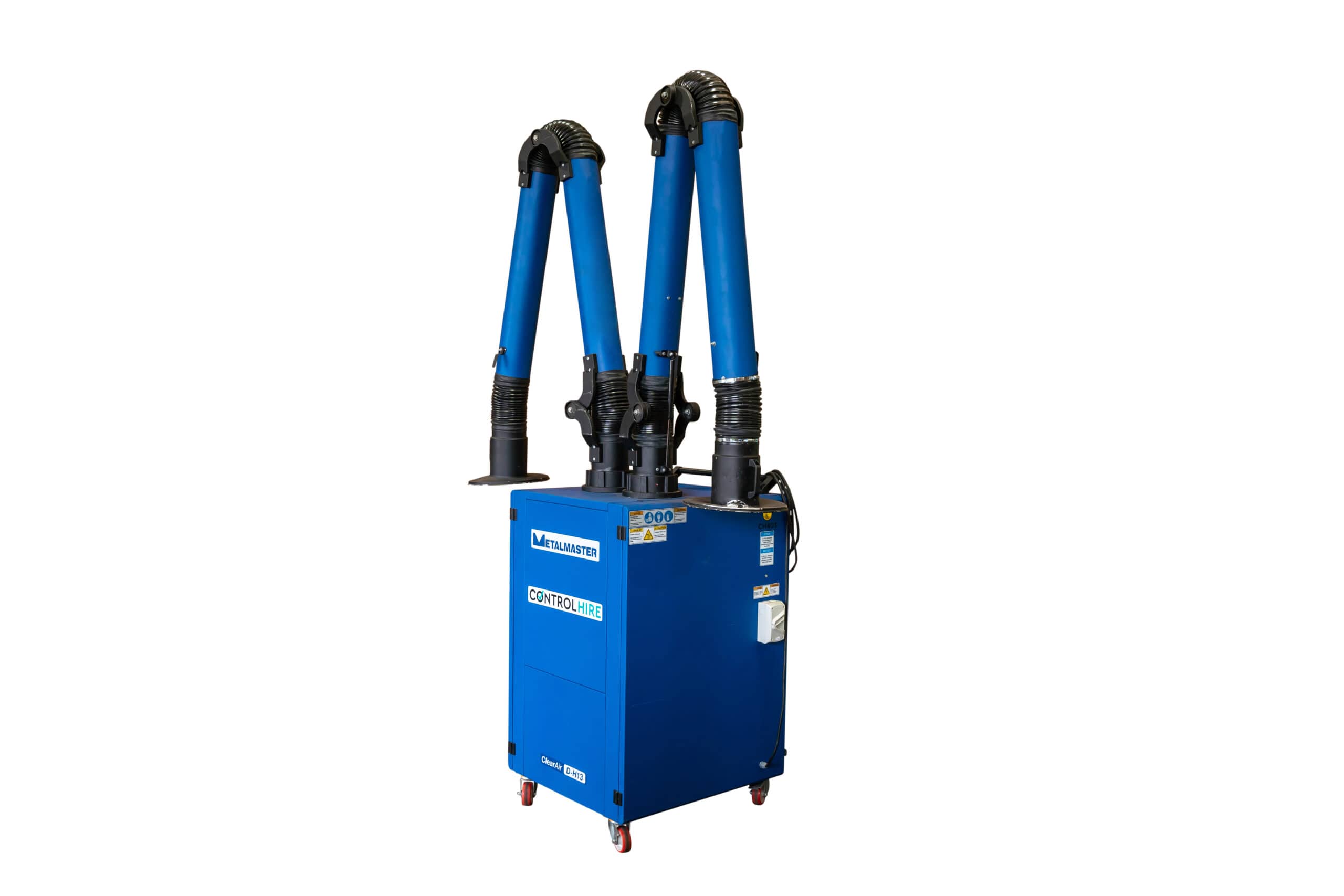

Twin Arm Mobile Welding Fume Filter

The Twin Arm Mobile Welding Fume Filter is the compact and mobile safety solution to your welding station. Extract and purify any noxious fumes through HEPA H13 class filters to keep your air clean and breathable.

Product Details

Available at Control Hire, our Twin Arm Mobile welding fume filter is suitable for all types of welding stations. It has the ability to get close to the source in most compact environments. This equipment is purpose built to extract fumes safely within the construction industry. Its portability makes convenience an advantage of this extraction system for welding fumes.

Specifications

Extraction Arm/Hose Length (Metre): 3 x 2 Arms
Extraction Arm Diameter (mm): 160
Air Flow (m3/h): 2600
Hepa Filter Area (m2): 46
Main Unit Size (w x l x h) (mm): 870 x 790 x 1335
Voltage / Amperage (V / A): 415 / 10
Motor Power (W): 2200
Nett Weight (kg): 180

Features

  • Dual stage filtering
  • High volume 2600 m3/h air filtering capacity
  • HEPA H13 filtration providing respirable clear air back into the working environment (99.95% dust separation for 0.1~0.2 micron particles)
  • 2 x 3 metre arms with exclusive Exo-Joint High velocity extraction arm (160mm Diameter)
  • Contamination free filter changing from clean air side
  • Silent operation – less than 76dBA
  • Compact design, space saving solution
  • Dirty filter warning light
  • Inlet Spark arrestor
  • Fully mobile for flexible usage
  • 415V 10amp power
