Designed for high-demand welding operations, this kit delivers centralised fume extraction and filtration for multiple workstations. With integrated ducting, hoods, and an Air Scrubber, it removes hazardous welding fumes, helping maintain compliance with silica and metal fume exposure standards.
Ensure regulatory compliance and worker protection on your job site with Control Hire’s robust multi-port filtration kit. Suitable for multiple simultaneous welders, this solution mitigates exposure to hazardous fumes in confined or enclosed work areas.

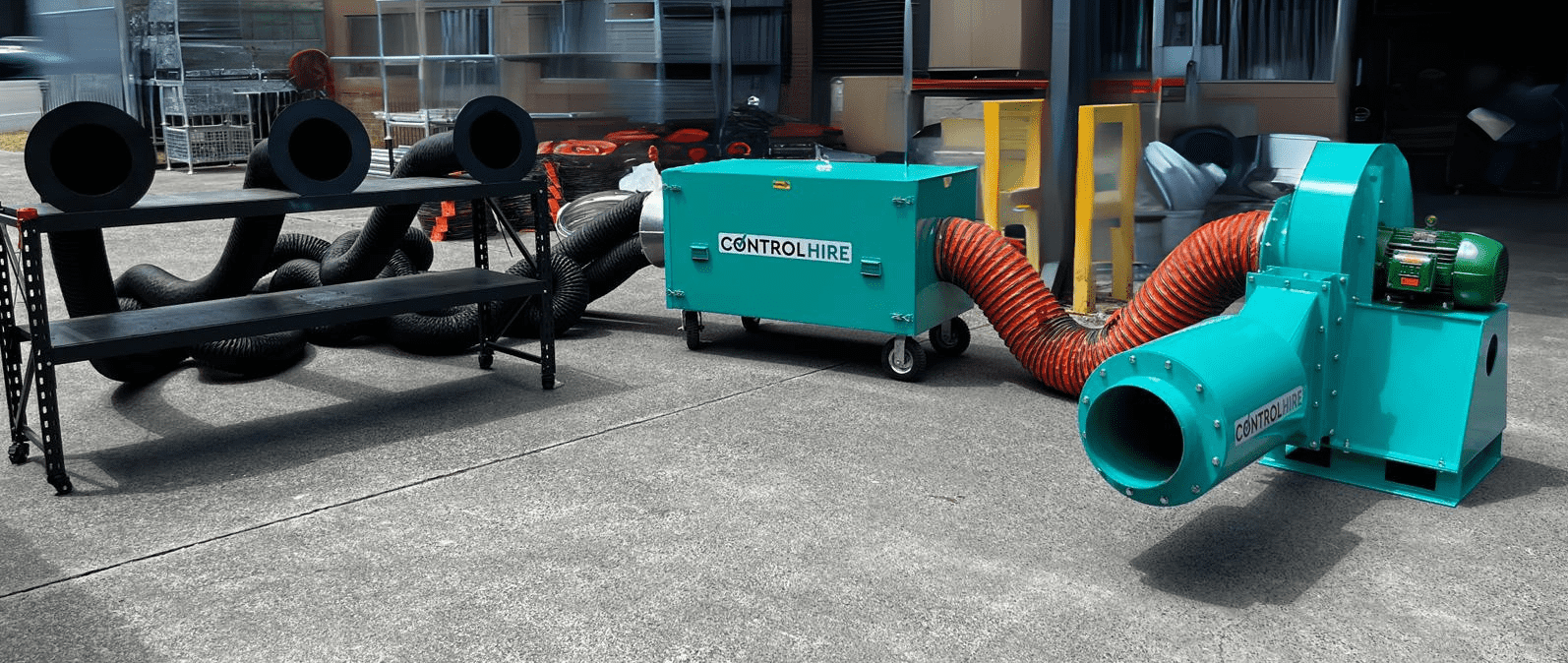

This Kit Includes
- H-510mm Centrifugal Fan
- 5,000 m³/hr Air Scrubber
- Exhaust Ducting
- Fume Exhaust Hoses
- Multiple Welding Fume Hoods
Key Applications
- Tunnel, Rail and Shaft welding operations
- Confined space fabrication
- Structural steel welding on large civil projects
- Workshops and Warehouses
- Production and Assembly Lines
- Infrastructure projects
Specifications
- Airflow: 8,500 m³/hr
- Motor Power: 7.5kW, 2940rpm
- Voltage: 415V, 32A, 4-Pin
- Duct Diameter: 305mm
- Dimensions: 1461 x 738 x 1179mm
- Weight: 250kg
- Temp Range: -20°C to +40°C
- Options: Silencers, Zones 1/2/21/22, Speed Controller
- Noise Level: 71dB(A) @ 1m (with Silencer)
88dB(A) @ 1m (without silencer)
